Product Description:

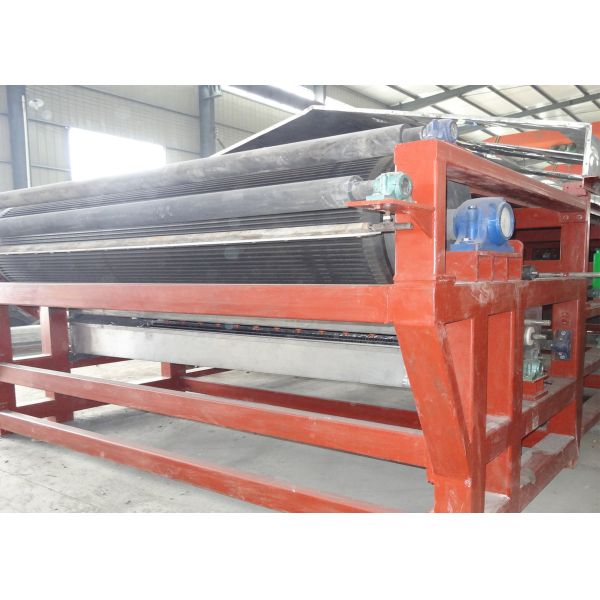

The horizontal belt filter adopts fixed vacuum box, the endless rubber belt is driven and moves on the vacuum box by gearbox continuously. The filter cloth lays on the belt and moves with belt synchronously. A water sealing structure is formed between wear belt and rubber belt. The slurry feeds through the hopper and distributed on the cloth evenly. When vacuum goes through the vacuum box, a vacuum absorbing and filtration section are formed on the belt. The filtrate enters into the vacuum box through the cloth, holes and grooves on the belt. Solid particles remains on the cloth and cake formed. The filtrate in the vacuum box drainages by liquid tank. The cake moves into washing and dewatering section then discharged. After cake discharging, washing the cloth and adjusted then back to filtration section for recycling.
Features:
-
| Assembled frame block-design, it is very easy for transportation, installation and maintenance. |
| High automatic control; continuously automatic control of feeding, filtration, washing, dewatering, discharging, cloth washing; improve productivity efficiency; reduce operation cost; reduce the working strength of labors; improve working environment. |
| Convenience filtrating process; by adjusting the thickness of cake, amount of washing water, countercurrent washing grade, vacuum degree and speed of cloth can achieve to a best filtration efficient. |
| Convenience filtrating process; by adjusting the thickness of cake, amount of washing water, countercurrent washing grade, vacuum degree and speed of cloth can achieve to a best filtration efficient. |
Technical Parameters:
| Filter Cake Discharge | Scraper or Belt Press |
| Vacuum Source | Vacuum Pump |
| Type | Continuous Vacuum Filter |
| Application | Solid-Liquid Separation |
| Filtration Area | 15 M2 |
| Filter Cake Wash | Counter-Current Wash |
| Operation | Continuous |
| Control System | PLC or DCS |
| Material Of Construction | Stainless Steel or Carbon Steel |
| Drive System | Variable Speed Drive |
This Horizontal Belt Filter is ideal for sedimentation, separation, and FGD applications.
Applications:
| Application of Materials | Liquid / Solid Ratio |
| Ciric Acid | 5/1 - 3/1 |
| Zinc Oxide | 10/1 |
| Ferromagnet | 2.5/1 - 4/1 |
| Sulphur Mine | 4/1 - 2.5/1 |
| Coal Ash | 10/1 |
| Gold Mine | 2/1 |
| Sulphuric Sludeg | 1.5/1 |
| Alumine | 5/1 - 4/1 |
| Wet Cement | 2/1 |
| Mining Tailings | 6/1 |
| ABS Resin | 10/1 |
Support and Services:
Our supporting and services scope can be described as below for Horizontal Belt Filter :
- Installation and commissioning
- Operator training
- Preventive maintenance
- On-site support and troubleshooting
- Parts and component replacement
- Upgrades and retrofits
FAQ:
Q: What is the Brand Name of this product?
A: The Brand Name of this product is UNIVEE.
Q: What is the Model Number of this product?
A: The Model Number of this product is U-HVBF.
Q: Where is this product manufactured?
A: This product is manufactured in China.
Q: What is the capacity of this Horizontal Belt Filter?
A: The capacity of this Horizontal Belt Filter varies depending on the specific model chosen. Please refer to the product specifications for more information.
